Universal Forks for Crane

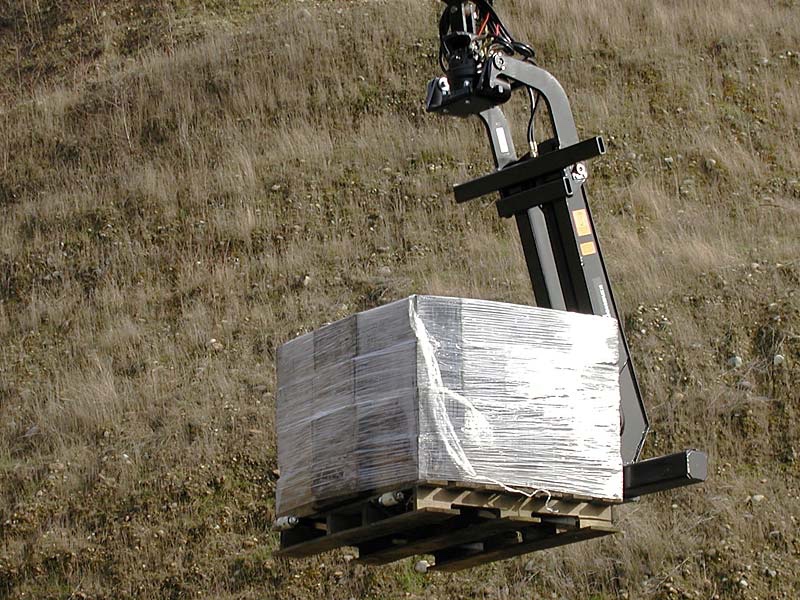

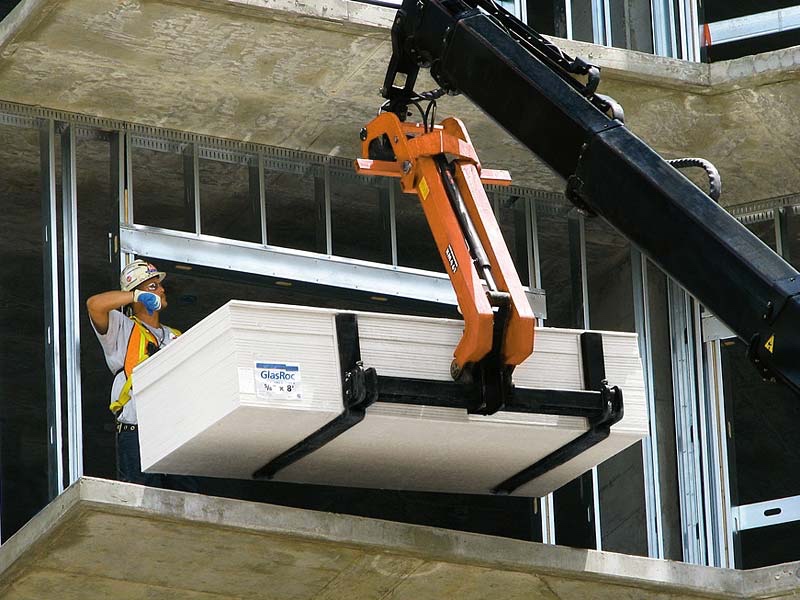

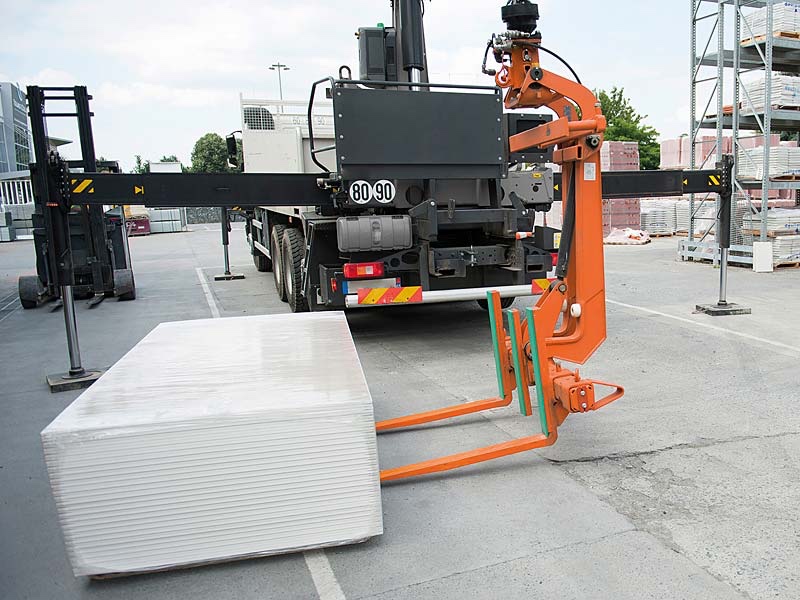

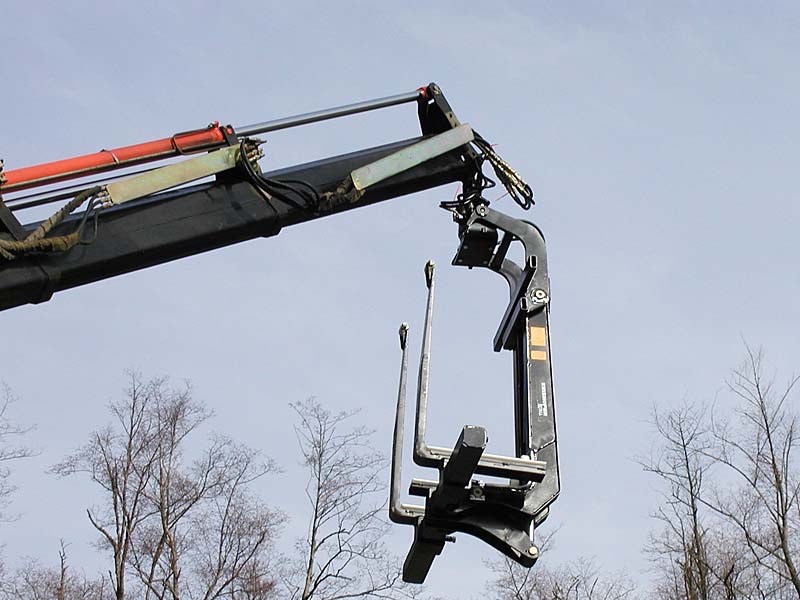

… handle wallboards and other lying building materials up to a size of 1250 mm / 49 in height and 460 mm / 18 in depth. The tine spread can be adjusted to the sheets that have to be handled. The boards can be lifted and folded into a vertical position and are clamped between tines and frame, preventing them from sliding during handling. The load itself is protected from damage by semi-tapered forged tines with rollers and pads.

A special version with second suspension point on the main beam enables the unloading of lying boards through narrow openings in the wall.

For the US, the forks are also available as LS low storage version, especially designed for »over-the-cab-storage« where limited space requires a very narrow fork frame and overall width.

KM 461 available with 6,000 lbs load capacity, flat lift heights of 48 or 54 in, throat heights of18 or 22 in and different tine spreads as complete package: universal fork, US-rotator, short hoses, upper suspension and counterbalance valve.

KM 461LS low storage-version available with 6,000 lbs load capacity, flat lift height 54 in and throat height 22 in with tine spread 25 to 63 in as complete package: low storage universal fork, US-rotator, short hoses, upper suspension and counterbalance valve.
